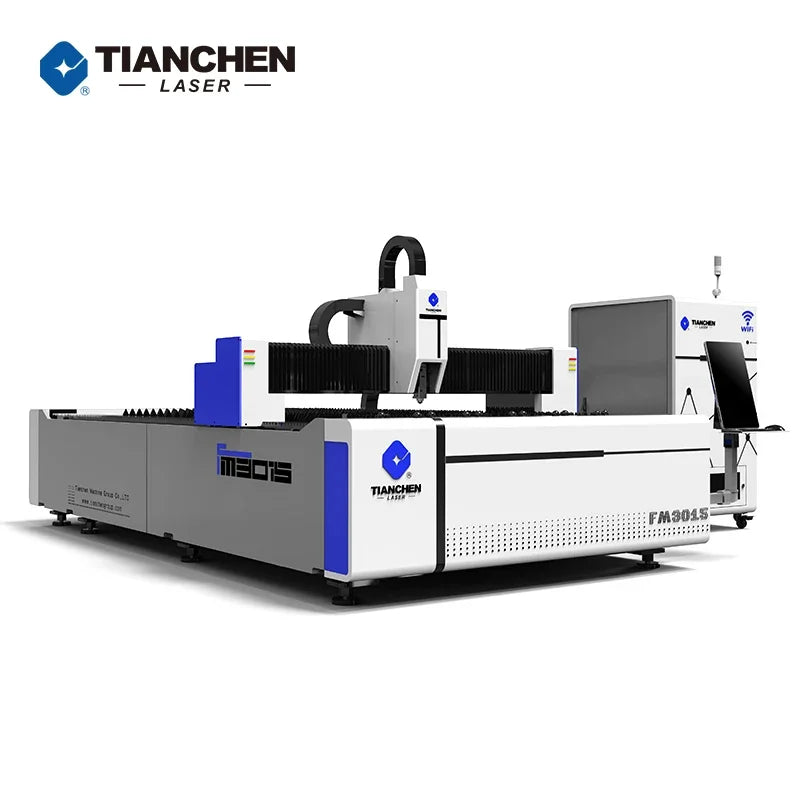

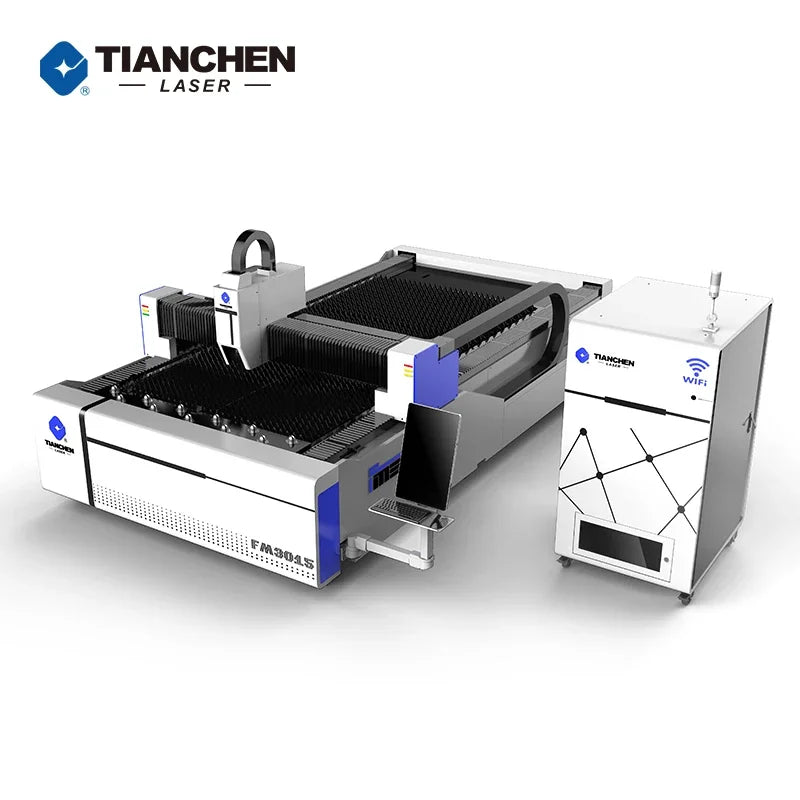

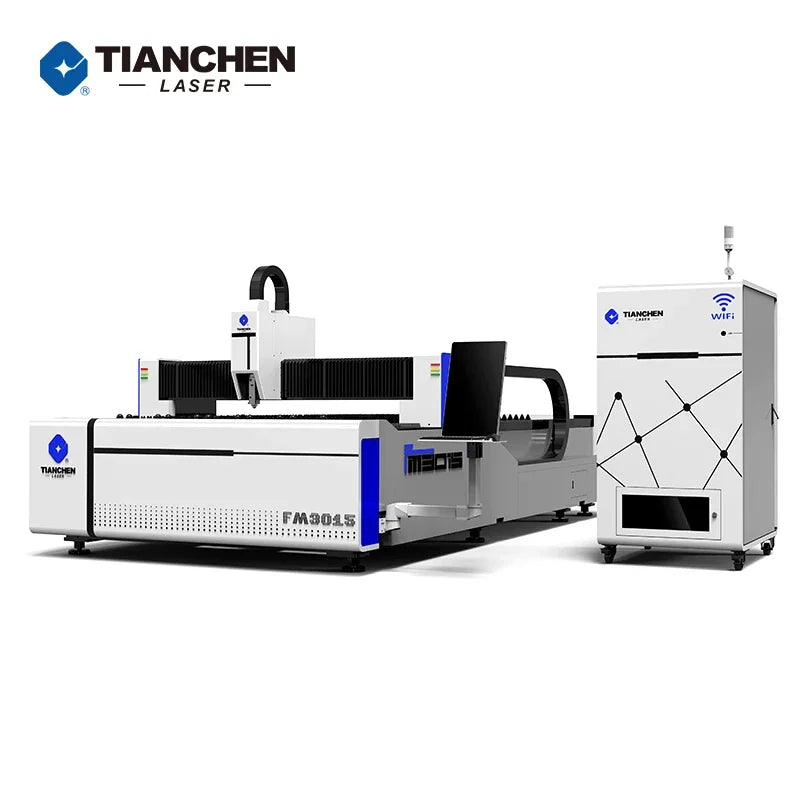

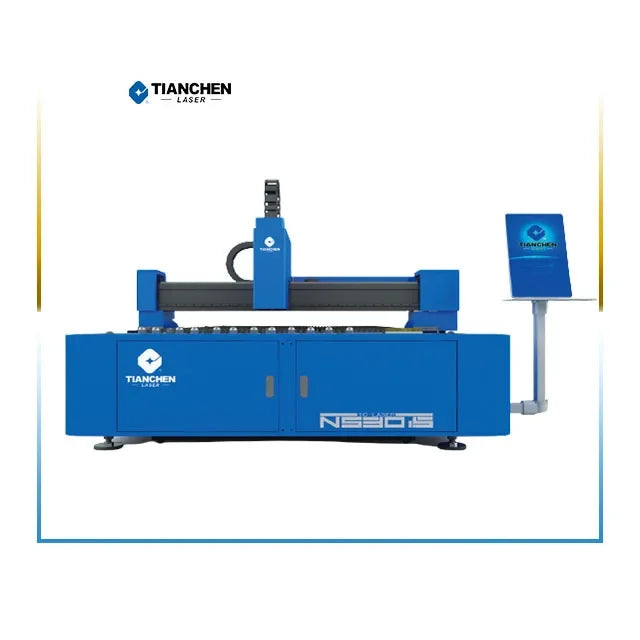

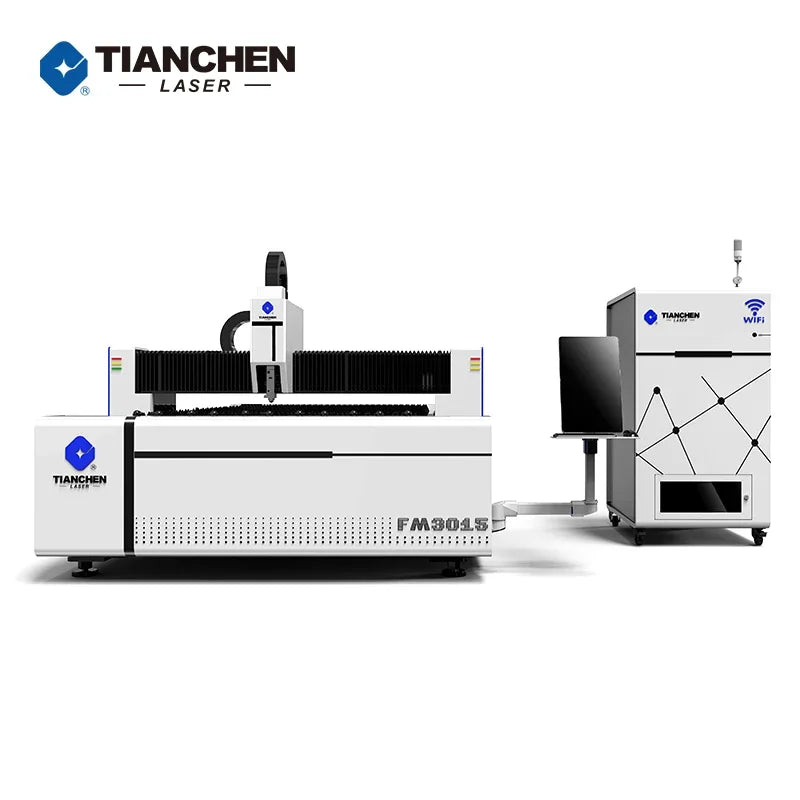

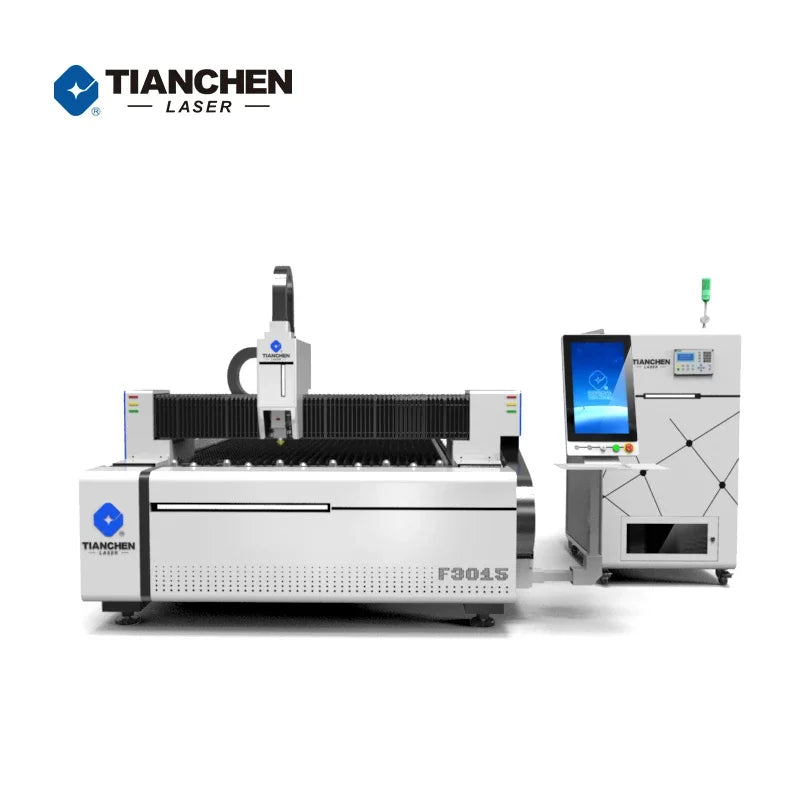

New Design 1500W Laser Cutting Steel Metal Cut Laser Cnc Fiber Laser Cutting Machine For Promotion
New Design 1500W Laser Cutting Steel Metal Cut Laser Cnc Fiber Laser Cutting Machine For Promotion
Couldn't load pickup availability
SPECIFICATIONS
After-sales Service Provided: Video technical support
Applicable Material: Metal, carbon steel, stainless steel, copper, iron, aluminum
Application: LASER CUTTING
Brand Name: NoEnName_Null
CNC or Not: Yes
Condition: New
Configuration: 4-axis
Control Software: Cypcut
Control System Brand: Cypcut
Cooling Mode: WATER COOLING
Core Components: Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Cutting Area: 1500mm*3000mm
Cutting Speed: 140m/min
Cutting Thickness: 0-40mm
Feature: Automated Loading
Graphic Format Supported: AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Guiderail Brand: HIWIN
Hign-concerned Chemical: None
Key Selling Points: Easy to Operate
Laser Head Brand: Raytools
Laser Source Brand: RAYCUS
Laser Type: Fiber Laser
Machinery Test Report: Provided
Mode of Operation: Pulsed
Optical Lens Brand: Wavelength
Origin: Mainland China
Place of Origin: Shandong, China
Products handled: Sheet Metal
Servo Motor Brand: Yaskawa
Showroom Location: Australia
Video outgoing-inspection: Provided
Warranty: 3 years
Warranty of core components: 3 years
Weight (KG): 10000 KG
Jinan Tianchen precision carbon steel sheet
fiber laser cutting machine 1000w price
The fiber laser cutting machine adopts 12-16mm plate welding bed, rack and gear drive-system, partition dusk removal system, and easy-to-learn Cypcut software. The steel sheet fiber laser cutting machine cutting precision is up to 0.01mm, with speed up to 140m/min. It is the best choice for 1kw-6kw users to manufacture economically. The precision fiber laser cutting machine mainly applies for stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, titanium and other metal sheet.
Technical Parameters
|
Product Model |
TC-F3015 | TC-F4020 | TC-F6020 | TC-F6025 |
| Laser Power | 1000W-6000W(optional) | |||
| Cutting Area | 3000mm x 1500mm | 4000mm x 2000mm | 6000mm x 2000mm | 6000mm x 2500mm |
| Maximum Acceleration | 1.4G | |||
| Maximum Moving Speed | 140m/min | |||
| Positioning Accuracy | 0.03mm | |||
| Repeated Positioning Accuracy | 0.02mm | |||
 |
1. The machine bed of Jinan Tianchen precision carbon steel sheet fiber laser cutting machine 1000w price is welded with 12-16mm thick carbon structural steel dislocation honeycomb structure, machined after stress relief and annealing, then vibration-aging and natural aging treatment, so that the welding and machining stress can be completely eliminated, to ensure excellent rigidity and high precision of the bed, reducing the machining error caused by the vibration of the bed. |
| 2. Independent R&D of forced cooling way, remove the dust for each processing area separately. Simple structure, good effect in sealing exhausting, low energy consumption, improve the dust removal effect in this area, workpiece much better, and also solved the environment pollution, and bring effective protection for operators and fiber laser cutting machine. |  |
 |
3. The automatic oil lubrication system automatically lubricates the guide rail, slider, rack and gear. It can be set by the time and travelled distance. All running parts with oil, prolong their working life, effectively prolongs the life of the steel sheet fiber laser cutting machine and reduces wear. |
| 4. The screen of precision fiber laser cutting machine adopts high definition capacitive touch screen, equivalent to positioning accuracy of ipad. The powerful waterproof and breathable system makes the space breathe and use more smoothly. |  |
Sample
The Jinan Tianchen precision carbon steel sheet fiber laser cutting machine 1000w price can cut stainless steel, carbon steel, aluminum and other metals, the cutting speed is very fast, and the cutting surface is also very smooth, which is the best choice for customers.
Customer case
Tianchen fiber laser cutting machines are popular in more than 20 countries, such as India, Japan, Korea, Malaysia, Russia, etc. The following is a group photo of customers from Russia, South Korea, India and other places after visiting our factory.
Customer praise
Because of the excellent quality, good service and long service life, Tianchen's fiber laser cutting machine has won excellent evaluation and praise from customers.
Exhibition
Every year, Tianchen Machine Group will bring hot sale steel sheet fiber laser precision cutting machine to many domestic and foreign industrial exhibitions, such as Qingdao Industrial Expo, Shanghai Industrial Expo, Indian Industrial Expo, Russian Industrial Expo, etc.
Service
Within 3 years under normal use and maintenance, if something is wrong with machine, you will get spare part for free. Out of 3 years, you will get spare part at cost price. You will also get technical support and service all the lifetime.
Technical support
1. Technical support by phone, email or whatsapp/Skype 24hours online.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Certification
Tianchen Tianchen Machine Group Co., Ltd. was founded in 1995 with the solid capital strength, strong technical force, perfect management mechanism and good reputation. It is one of the leading manufacturers in China. Tianchen has Tianchen Laser Machine, Tianchen Aluminum Machine, Tianchen Intelligent Parking, Tianchen Testing Machine and other subsidiaries. We have a wide range of production base, the factory covers an area of 200,000 square meters, has 1,500 employees, and has the workshop, processing workshop, welding workshop, painting workshop, assembly workshop, and inspection workshop; At the same time we build a modern technology center and one top scientific research team.
Q1:What is the cutting size of this machine?
A:1500*3000mm For plate,it also can be customized as needed.
Q2:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according to quantity.
Q3:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
